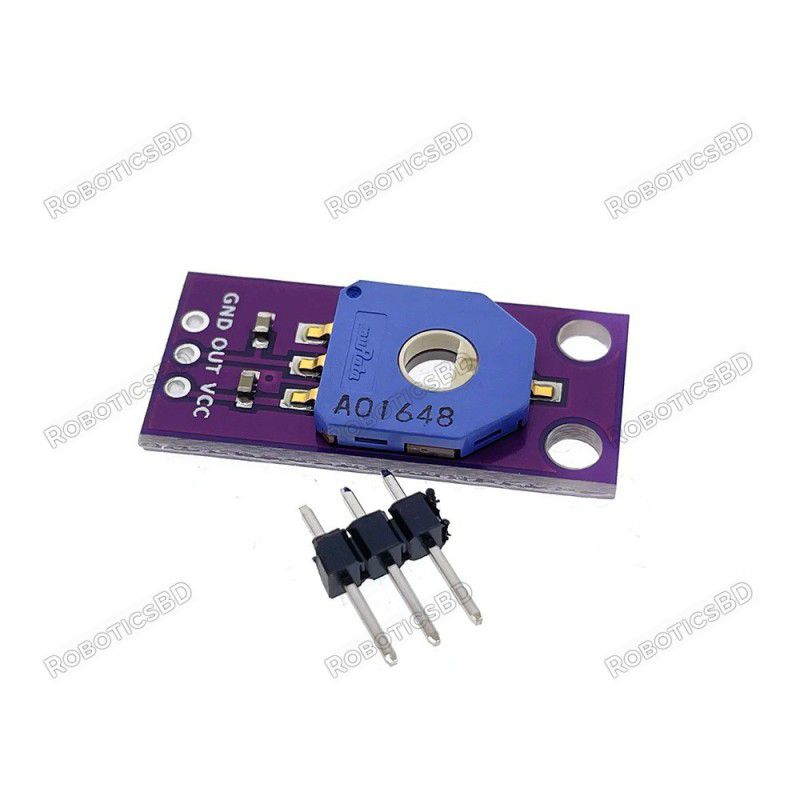

The SV01A103AEA01R00 is a high-precision, ultra-thin dust-proof rotation angle sensor module, specifically designed for reliable rotary position measurement across a wide range of applications. Featuring resistive technology and continuous 360-degree mechanical rotation, this sensor ensures stable, linear analog output even under harsh conditions.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The SV01A103AEA01R00 is a high-precision, ultra-thin dust-proof rotation angle sensor module, specifically designed for reliable rotary position measurement across a wide range of applications. Featuring resistive technology and continuous 360-degree mechanical rotation, this sensor ensures stable, linear analog output even under harsh conditions.
Built to withstand dust, high temperatures, and mechanical wear, the SV01A103AEA01R00 is a trusted choice for automotive, robotics, and industrial control systems. Its compact surface-mount design, gold-plated terminals, and lead-free compliance make it ideal for modern, space-constrained applications requiring durability and precision.
Dust-proof construction ensures consistent, stable performance
Supports continuous rotation with an electrical angle of 0° ~ 333.3°
High linearity of ±2% for accurate analog position feedback
10kΩ resistance with ±30% tolerance
Surface Mount (SMD) tabs for easy and robust integration
Ultra-thin design with compact footprint
Gold-plated terminals for enhanced durability and lead-free solder compliance
Resistive technology provides reliable, smooth analog output
D-shaped thru-hole rotor compatible with various gear designs
Withstands up to 1 million windshield wiper cycles
Category: Sensors, Transducers
Family: Position Sensors – Angle, Linear Position Measuring
Series: SV01
Measurement Type: Rotary Position
Technology: Resistive
Electrical Rotation Angle: 0° ~ 333.3°
Mechanical Rotation: Continuous
Output Signal: Analog Voltage
Resistance: 10kΩ
Resistance Tolerance: ±30%
Linearity: ±2%
Actuator Type: D-shaped hole for shaft
Mounting Type: Surface Mount (SMD Tabs)
Operating Temperature: -40°C ~ 85°C
Termination: Gold-plated SMD Tabs
Lifespan: Up to 1 million rotational cycles
Mount the sensor onto the PCB using SMD soldering techniques.
Insert a shaft into the D-shaped rotor hole for mechanical actuation.
Supply voltage to the module and read analog voltage output proportional to the rotation.
Integrate the sensor output into a microcontroller’s ADC for precise angle readings.
Animal robotics and robotic joint position feedback
Automotive industry switches and motor drive units
Electric bicycle motor control systems
Radio control (RC) equipment
Industrial and mechatronics automation projects
1 x SV01A103AEA01R00 Dust-Proof Rotation Angle Sensor Module
Superior dust-proof design for high-stability performance
Compact and ultra-thin for space-sensitive applications
Durable and reliable with 1 million operation cycle rating
Wide temperature range support from -40°C to +85°C
Lead-free and RoHS compliant for environmentally safe production
Enhance your project's precision and durability with the SV01A103AEA01R00 Dust-Proof Rotation Angle Sensor Module.
Order now and build systems that demand nothing less than accuracy and long-lasting performance!
The latest price of SV01A103AEA01R00 Dust-Proof Rotation Angle Sensor Module in Bangladesh is BDT 390 You can buy the SV01A103AEA01R00 Dust-Proof Rotation Angle Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
