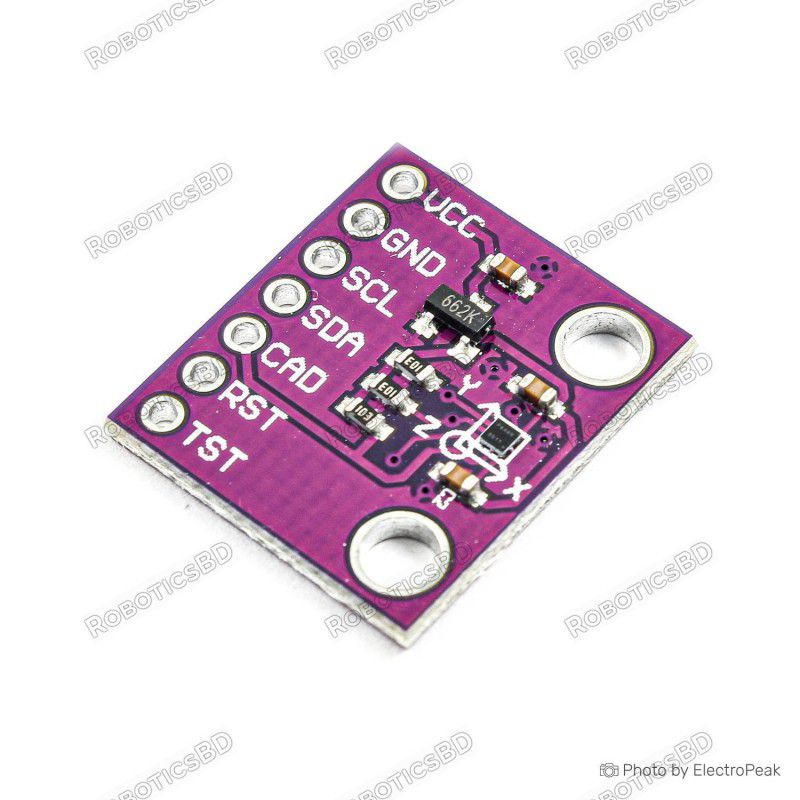

The CJMCU AK09911C 3-Axis Geomagnetic Hall Effect Sensor Module is a high-sensitivity magnetic field sensor designed to precisely detect and measure Earth's geomagnetic fields across three axes. Built around the AK09911C electronic compass chip, this module integrates advanced Hall sensing technology, 14-bit ADC, and I2C digital communication, offering high accuracy and fast responsiveness ideal for mobile navigation, robotic guidance, and portable applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The CJMCU AK09911C 3-Axis Geomagnetic Hall Effect Sensor Module is a high-sensitivity magnetic field sensor designed to precisely detect and measure Earth's geomagnetic fields across three axes. Built around the AK09911C electronic compass chip, this module integrates advanced Hall sensing technology, 14-bit ADC, and I2C digital communication, offering high accuracy and fast responsiveness ideal for mobile navigation, robotic guidance, and portable applications.
With an operating voltage range of 2.4V to 3.6V, and capable of measuring magnetic fields up to ±4912µT, the module achieves outstanding sensitivity and precision with low power consumption. It supports multiple operating modes, including power-off, single measurement, continuous measurement, self-test, and fuse ROM access, ensuring versatility for different project needs.
Three-axis magnetometer for compass and navigation applications
Built-in 14-bit ADC providing precise digital output for all three axes
Wide measurement range: ±4912µT with high sensitivity (0.6µT/LSB)
Supports multiple communication speeds including standard, fast, and high-speed (up to 2.5MHz) I2C
Compact and lightweight for easy integration into mobile or embedded systems
Self-test and overflow monitoring functions for enhanced reliability
Compatible with Arduino, STM32, ESP32, and other microcontroller platforms
Chip: AK09911C
Working Voltage: 2.4V to 3.6V DC
Communication Interface: I2C (Standard, Fast, High-Speed)
Sensitivity: 0.6µT/LSB
Measurement Range: ±4912µT
Measurement Time: 8.5ms (Max)
Output Type: Digital (14-bit)
Operating Temperature Range: -30°C to +85°C
Number of Pins: 7 Pin Interface
Module Size: 18.54mm x 16.25mm
Power-Off Mode: Minimal power consumption when idle
Single Measurement Mode: Takes a one-time measurement when triggered
Continuous Measurement Mode: Repeatedly measures at set intervals
Self-Test Mode: Uses internal magnetic source for self-diagnosis
Fuse ROM Access Mode: Accesses factory-programmed data
Connect the module to your microcontroller via I2C interface (SCL/SDA lines).
Configure the operating mode according to your application needs.
Read the 14-bit digital values corresponding to the magnetic field along X, Y, and Z axes.
Use the data for heading, orientation, or motion sensing applications.
Mobile device navigation and GPS enhancement
Robotic orientation and movement tracking
Wearable fitness and activity tracking
Compass systems for drones and autonomous vehicles
Magnetic field monitoring and detection
Smart city and indoor navigation solutions
1 x CJMCU AK09911C 3-Axis Geomagnetic Hall Sensor Module
1 x Pin Header
Highly accurate geomagnetic field detection with 14-bit precision
Compact and lightweight for seamless integration
Multiple operational modes to suit a variety of applications
Energy-efficient design ideal for battery-powered projects
Easy communication via standard I2C with support for fast and high-speed modes
Achieve accurate, reliable magnetic field sensing for your next navigation or motion project with the AK09911C 3-Axis Geomagnetic Hall Effect Sensor Module.
Order now to bring precision compass capabilities to your devices!
The latest price of AK09911C 3-Axis Geomagnetic Hall Effect Sensor Module in Bangladesh is BDT 790 You can buy the AK09911C 3-Axis Geomagnetic Hall Effect Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
