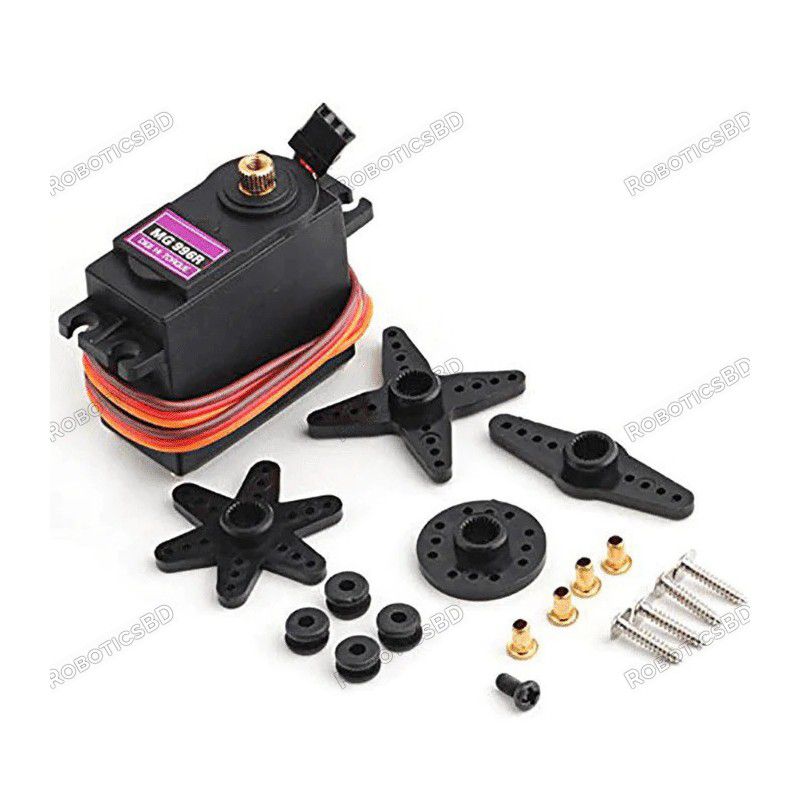

The MG996R 10kg Servo is a type of motor that is commonly used in robotics and control applications. It is a high-torque servo motor that is capable of delivering up to 10kg of force. The motor is fully metal, meaning that it has a metal casing and gears, which provides durability and strength. The MG996R Servo is widely used in robotic projects such as arms and legs for humanoid robots, remote control vehicles, and model aircraft. It operates using pulse-width modulation (PWM) and is controlled by sending a series of pulses to the motor, which determines the position of the motor shaft. The motor can rotate over a range of approximately 270 degrees, making it ideal for a variety of applications where precise control of motion is required.. Featured By RoboticsBD.
|
This servo motor requires a higher current and cannot be powered directly from the Arduino Uno or Mega. You will need to provide an additional 5V, 3A power supply in conjunction with the Arduino. |
When you purchase TowerPro motors in Bangladesh, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RED – Positive
Brown – Negative
Orange – Signal
| General Specification | |
| Operating Voltage (VDC) | 4.8 ~ 6.6 |
| Temperature Range | 0- 55℃ |
| Stall Torque @ 4.8V (Kg-Cm) | 9.4 |
| Stall Torque @6.6V (Kg-Cm) | 11 |
| Operating Speed @4.8V | 0.19sec/60° |
| Operating Speed @6.6V | 0.15sec/60° |
| Dead Bandwidth | 1uS |
| Gear Type | Metal |
| No. of teeth | 25 |
| Length (mm) | 40.7 |
| Width (mm) | 19.7 |
| Height (mm) | 42.9 |
| Weight (gm) | 55 |
| Shipment Weight | 0.059 kg |
| Shipment Dimensions | 5 × 3 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Servo Motor MG996R 270 Degree Rotation
The latest price of Servo Motor MG996R 270 Degree Rotation in Bangladesh is BDT 790 You can buy the Servo Motor MG996R 270 Degree Rotation at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
