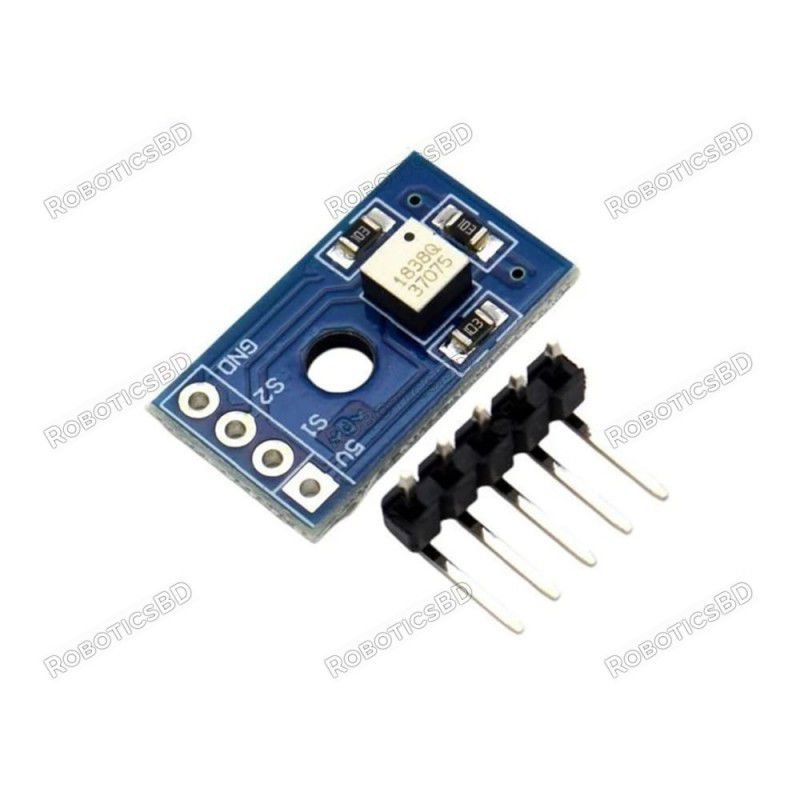

The RPI-1031 Angle Sensor is a high-precision, 360-degree rotation sensor designed for accurate angle measurement in a wide range of applications. This sensor utilizes optical principles for precise angle detection, making it ideal for robotics, automation, and industrial control systems. With a compact and durable design, the RPI-1031 Angle Sensor is suitable for both indoor and outdoor environments.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The RPI-1031 Angle Sensor is a high-precision, 360-degree rotation sensor designed for accurate angle measurement in a wide range of applications. This sensor utilizes optical principles for precise angle detection, making it ideal for robotics, automation, and industrial control systems. With a compact and durable design, the RPI-1031 Angle Sensor is suitable for both indoor and outdoor environments.
Equipped with a high-quality potentiometer and digital output interface, the sensor offers an accuracy of 0.3 degrees and supports multiple output modes, making integration into projects seamless. Whether you're a hobbyist, engineer, or industrial developer, this sensor provides reliable and efficient angle measurement.
✔ 360° Angle Measurement – Accurately detects pitch, roll, and yaw angles
✔ High Precision – Offers 0.3-degree measurement accuracy
✔ Advanced Optical Detection – Uses photosensitive transistors for accurate sensing
✔ Digital Output Interface – Ensures easy microcontroller compatibility
✔ Durable & Compact Design – Lightweight and strong, ideal for industrial applications
✔ Low Power Consumption – Energy-efficient for long-term applications
✔ Versatile Applications – Perfect for robotics, automation, and motion tracking
| Parameter | Specification |
|---|---|
| Model | RPI-1031 |
| Measurement Range | 0° – 360° |
| Accuracy | ±0.3° |
| Sensor Type | Optical-Based Angle Sensor |
| Output Type | Digital |
| Size | 20mm × 12mm × 4mm |
| DOF (Degrees of Freedom) | 4 (Pitch, Roll, Yaw) |
| Power Supply | Standard Low-Voltage DC |
The RPI-1031 Angle Sensor functions using optical principles, detecting rotation using a light-emitting diode (LED) and two photosensitive transistors:
✔ Robotics – Enables precise movement and positioning of robotic arms and joints
✔ Automation Systems – Ideal for industrial machinery and process control
✔ Motion Tracking – Used in gaming, fitness, and sports tracking systems
✔ Aerospace & Automotive – Suitable for flight control and vehicle stability
✔ Home Automation – Integrates with smart systems for precise motion sensing
✔ Educational & Research Projects – A great tool for learning and experimentation
✅ High Accuracy (0.3° precision) – Ensures reliable measurement
✅ 360° Detection – Ideal for full-range motion tracking
✅ Compact & Durable – Designed for long-term stability
✅ Easy Microcontroller Integration – Works with Arduino, Raspberry Pi, and STM32
✅ Versatile Applications – Perfect for DIY and industrial-grade projects
The latest price of RPI-1031 Angle Sensor in Bangladesh is BDT 450 You can buy the RPI-1031 Angle Sensor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
