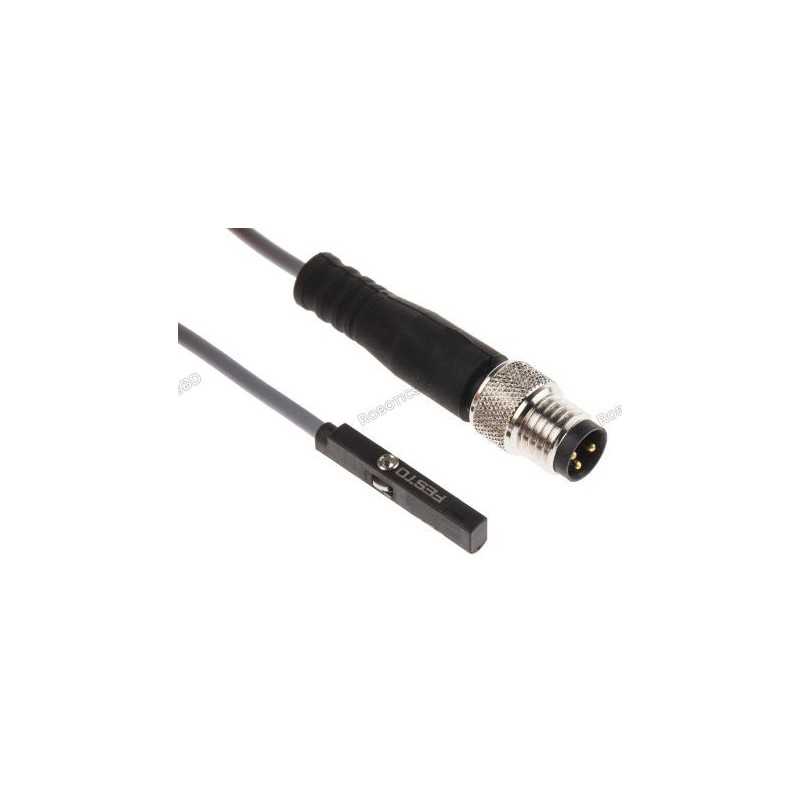

Festo SMT-10M-PS-24V-E-0,3-L-M8D
RBD-1401
- Measured variable Position
- Measuring principle Magneto-resistive
- Ambient temperature -40 °C ... 70 °C
- Repetition accuracy 0.2 mm
- Switching output PNP
- Switching element function N/O contact
- On time ≤1.3 ms
- Switch-off time ≤1.4 ms
- Max. switching frequency 150 Hz
- Max. output current 100 mA
- Max. output current in mounting kits 50 mA
- Max. switching capacity DC 2.8 W
- Max. switching capacity DC in mounting kits 1.5 W
- Voltage drop ≤1.7 V
-
Store Pickup Available!
-
Free Ship Over 5000 BDT
-
Quality Product
-
No Warranty
-
No Replacement
Festo SMT/SME-10M Series C-Slot proximity sensors are fully compatible with all Festo cylinders that have C-slots and round cylinders with corresponding mounting kits. The SME/SMT range provides a reliable sensing solution in a variety of switching options. RoboticsBD
All sensors have cables suitable for use in energy chains and on robot applications as standard. This ensures maximum dependability and process reliability.
Features:
- Sturdy central mounting guarantees that the sensor is securely screwed into the slot
- Vibration, shock and tensile forces applied to the cable will neither cause the sensor to come loose nor lead to unreliable sensor functioning
- The proximity sensors are compatible with all Festo C-Slots
- 24 V dc operating voltage
- Switching outputs include PNP, NPN, and contacting
| General Specification | |
| Manufacturer Series | SMT |
| Compatible With | C-Slot |
| Type | Magneto Resistive |
| LED Indicator | Yes |
| IP Rating | IP65, IP68 |
| Supply Voltage | 24V dc |
| Operation | NO |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | (+70°C) |
| Shipment Weight | 0.055 kg |
| Shipment Dimensions | 17 × 15 × 3 cm |
Documentation:
Package Includes:
1 x Festo SMT-10M-PS-24V-E-0,3-L-M8D
