Servo Motor MG995 360 Degree Continuous Rotation

RBD-0295
  • Model: MG995
  • Weight: 55 gm
  • Operating voltage: 4.8V~ 7.2V
  • Servo Plug: JR
  • Stall torque @4.8V : 9.4kg-cm
  • Stall torque @6.6V : 11kg-cm

Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.
BDT 880
rating Read the 6 reviews
Average rating: 5/5 - Number of reviews: 6
Quantity
In-Stock

18 people have purchased this item in last 12 months
106 people recently added this item to the cart
38 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

Continuous rotation servos are like regular hobby RC servos but modified to offer speed control instead of position control. They're essentially compact, affordable motors with integrated motor drivers. Add a wheel, and you've got a simple drive system for your robot, controllable with an RC signal or directly connected to a single microcontroller I/O line.

  1. As the name implies, a "continuous rotation" servo cannot be controlled in terms of degree; it will rotate continuously either in the forward or reverse direction. However, you can control its speed. The code for operating a continuous rotation servo differs from that of a regular servo.
  2. To achieve continuous rotation to the left, use the command myServo.write(0). For rotation to the right, employ myServo.write(180). To halt the servo's movement, you'll need to find the exact value. You can try different values around the middle, such as myServo.write(90) or myServo.write(95), to determine the stopping point.

Enjoy controlling your robot and exploring its capabilities!

Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognize and buy an original TowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name.

We have imported this copy of original TowerPro MG995 High-Speed Servo from our trusted supplier. Though the motor is the copy of the original High-Speed TowerPro MG995 servo, it is compatible with all the applications that use the genuine TowerPro MG995 servo because of its same size, comparable quality, and optimized performance.

It has metal gears which makes it robust and reliable motors. These TowerPro MG995 – Continuous Rotation 360° Metal Gear Servo Motor are the high-speed servo motors with the mighty torque of 9.4 kg/cm.

The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.

This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

This servo motor requires a higher current and cannot be powered directly from the Arduino Uno or Mega. You will need to provide an additional 5V, 3A power supply in conjunction with the Arduino.

Please do not manually rotate the motor or gear shaft by hand, as this could cause permanent damage to the motor.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Wire Description

RED – Positive

Brown – Negative

Orange – Signal

NOTE :

This servo draws high current while operation (up to 2 amp stall), to make this servo work with Arduino or any other microcontroller, please do following connections.

  1. PLEASE MAKE SURE THAT YOUR SYSTEM HAS COMMON GROUND.
  2. POWER SOURCE ANYTHING BATTERY/SMPS/ADAPTER.

Features :

  1. The connection cable is thicker.
  2. Equips high-quality motor.
  3. High resolution
  4. Accurate positioning
  5. Fast control response
  6. Constant torque throughout the servo travel range
  7. Excellent holding power

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model MG995
Weight(gm) 55
Operating Voltage (VDC) 4.8 ~ 7.2
Operating Speed @4.8V 0.20sec/60°
Operating Speed @6.6V 0.16sec/60°
Stall Torque @ 4.8V (Kg-Cm) 9.4
Stall Torque @6.6V (Kg-Cm) 11
Operating Temperature (°C) -30 to 60
Dead Band Width ( μs) 4
Gear Type Metal
Rotational Degree 360º
Servo Plug JR
Cable Length (cm) 30
Length (mm) 40.5
Width (mm) 20
Height (mm) 44
Shipment Weight 0.059 kg
Shipment Dimensions 9 × 8 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

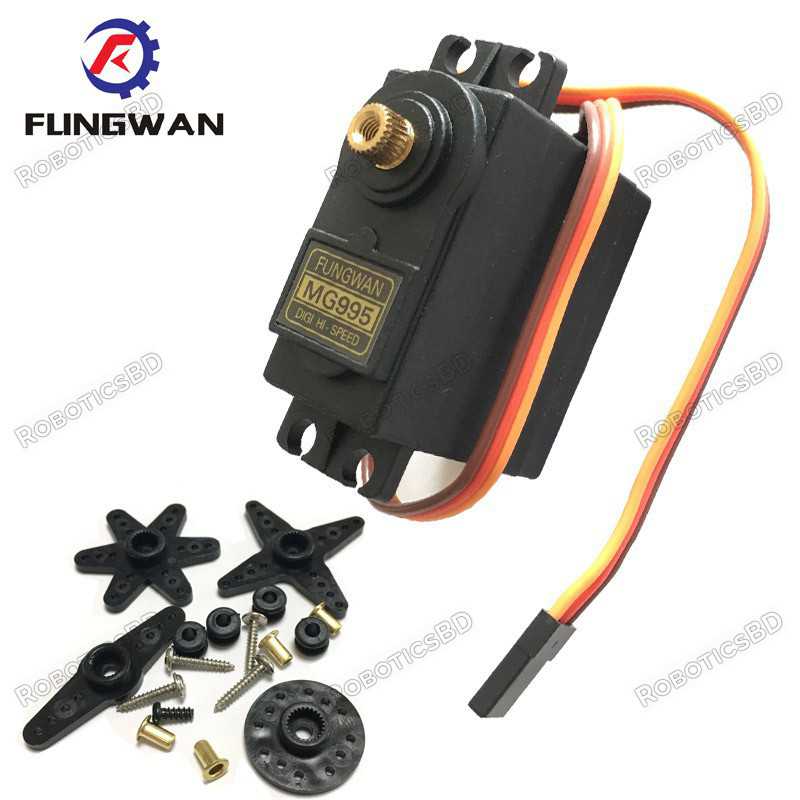

1 x TowerPro MG995 Servo Motor with Cable

Set of Horns

  1. One Point
  2. Two Point
  3. Four Point

1 x Set of Screws

1 x Aluminum Servo Horn Arm.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of Servo Motor MG995 360 Degree Continuous Rotation in Bangladesh?

The latest price of Servo Motor MG995 360 Degree Continuous Rotation in Bangladesh is BDT 880 You can buy the Servo Motor MG995 360 Degree Continuous Rotation at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-0295
38 Items
Good Quality
rating
09/07/2024
Md. Firoz Alam
Good Quality
Continuous Rotation Servo
rating
24/07/2023
Tahsin Alam
Seems good ! Good torque. Suitable for mini bots ! But the price should be lower.
Review
rating
11/06/2023
Alex Ricky Karmakar
Great
Good
rating
23/11/2021
Md. Toukir Ahmed
Good product for project. Quality is satisfactory.
Great
rating
11/06/2021
Raiyaan Abdullah
Performs 360 deg rotation as expected
Good component
rating
28/03/2021
Debnath Saummya Protyay
Highly recommend
