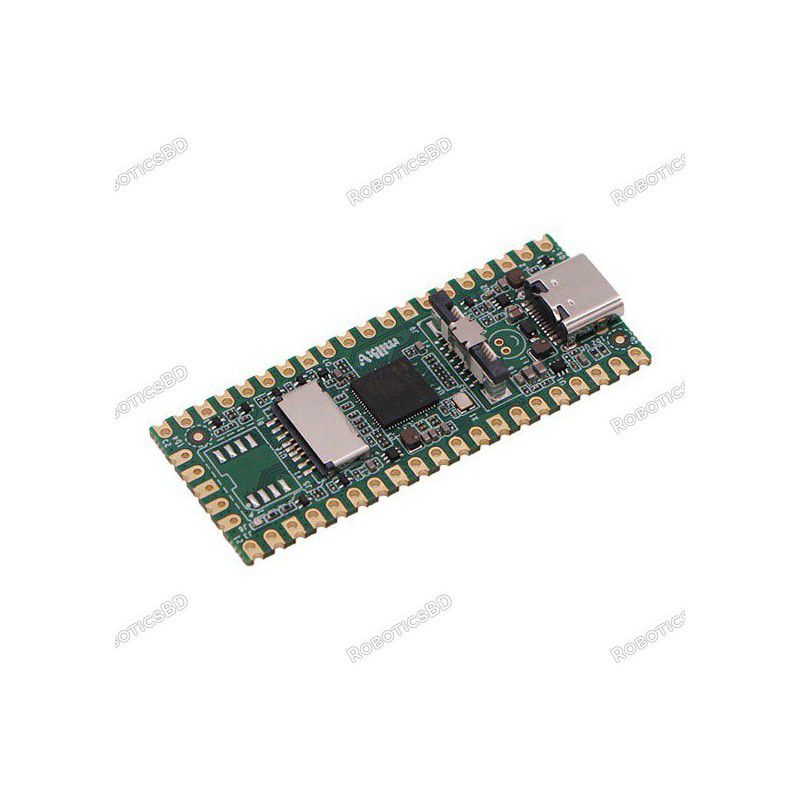

Overview: The Milk-V Duo is an ultra-compact embedded development platform powered by the CV1800B chip. Designed for flexibility and high performance, it can run Linux and RTOS, making it an excellent choice for professionals, industrial ODMs, AIoT enthusiasts, DIY hobbyists, and creators. Despite its small size, this board offers powerful processing capabilities and extensive connectivity options.
PCB color can be different as per our stock.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
Overview: The Milk-V Duo is an ultra-compact embedded development platform powered by the CV1800B chip. Designed for flexibility and high performance, it can run Linux and RTOS, making it an excellent choice for professionals, industrial ODMs, AIoT enthusiasts, DIY hobbyists, and creators. Despite its small size, this board offers powerful processing capabilities and extensive connectivity options.
Specifications:
Processor: CVITEK CV1800B Dual-Core RV64 (C906@1GHz + C906@700MHz)
TPU: Integrated 0.5 TOPs (Int8) for AI applications
Memory: DDR2 64MB
Microcontroller: Embedded 8051 8KB MCU
Connectivity:
Ethernet: 10/100 Mbps PHY (requires external transformer and RJ45 socket)
USB: USB 2.0 Type-C for data and power, backward compatible with USB 1.1
Camera: 16-pin FPC connector (2-lane MIPI CSI)
Storage: 1x Micro SD slot, SD NAND solder pad
GPIO: Up to 26 pins supporting SDIO, I2C, PWM, SPI, UART, ADC, JTAG
Output: 3.3V 2A
Power Input: 5V (via USB-C)
Size: 51mm x 21mm x 1mm
Features:
Processing Power:
Dual RISC-V cores (1GHz + 700MHz)
Integrated TPU for smart detection and AI image recognition
Hardware H.264/H.265 video encoding (up to 2880x1620@20fps)
Camera and Image Support:
2-lane MIPI CSI camera input with a 16-pin FPC interface
Comprehensive ISP features for image optimization
Compatible with high-definition CMOS sensors
Audio:
16-bit audio codec with built-in microphone input/output
Network and USB:
100Mbps Ethernet PHY with solder pad connection
USB 2.0 with support for various speed modes and power-saving functions
Can function as a USB slave device
GPIO and Peripheral Access:
Up to 3x I2C, 5x UART, 1x SDIO1, 1x SPI, 2x ADC, 7x PWM, 1x RUN, and 1x JTAG
40 main user pins on a 2.54mm pitch grid compatible with veroboard and breadboard
Board Design:
Single-sided PCB with Type-C port on the top edge
Dual castellated/through-hole pins for surface mount or DIP usage
Compatible with Raspberry Pi Pico Port
Compact form factor: 51mm x 21mm, ideal for space-constrained projects
Package Includes:
1 x Milk-V Duo RISC-V Linux Board (Note: SD card, cables, and header pins are not included. The color is random.)
The Milk-V Duo RISC-V board is a versatile and powerful development platform perfect for advanced embedded applications. Whether you're developing AIoT solutions or working on complex electronics projects, the Milk-V Duo provides the performance, connectivity, and compatibility you need.
Overview: https://www.youtube.com/watch?v=YqUtGk0DHbQ
Camera Module: https://shop.plati.ma/products/milk-v-cam-gc2083-camera-module-for-duo-hw-v1-1
Documentation: https://milkv.io/docs/duo/overview
V1.2 Schematic: https://github.com/milkv-duo/duo-hardware/blob/main/duo/duo-schematic-v1.2.pdf
NOTE: No SD card or cables are included. Colour is random! Header pins optional.
The latest price of Milk-V Duo (64M) - 1GHz Dual-Core RISC-V + 8051 SBC in Bangladesh is BDT 1,750 You can buy the Milk-V Duo (64M) - 1GHz Dual-Core RISC-V + 8051 SBC at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
