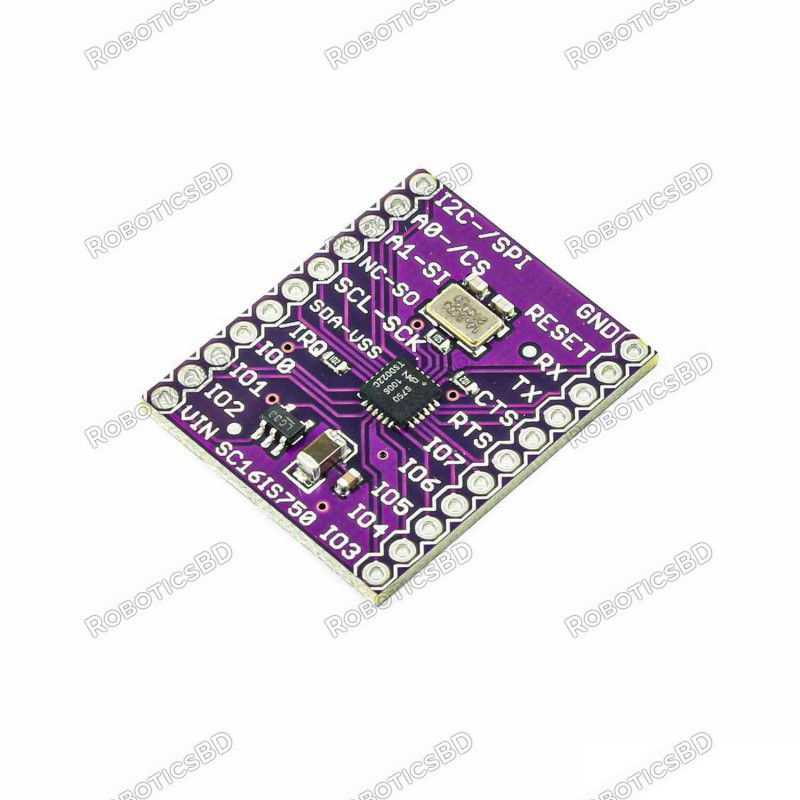

The CJMCU-750 SC16IS750 is a high-performance UART converter module designed to bridge I2C/SPI interfaces with dual UART communication, enabling easy interfacing of UART-based devices with microcontrollers that may have limited UART ports. This module enhances data exchange speeds using SPI while freeing up the hardware UART ports for other applications.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The CJMCU-750 SC16IS750 is a high-performance UART converter module designed to bridge I2C/SPI interfaces with dual UART communication, enabling easy interfacing of UART-based devices with microcontrollers that may have limited UART ports. This module enhances data exchange speeds using SPI while freeing up the hardware UART ports for other applications.
Equipped with a low-dropout 3.3V voltage regulator, it supports both 3.3V and 5V microcontroller systems, ensuring compatibility across a wide range of development boards, including Arduino, ESP32, and Raspberry Pi. With its embedded 14.7456 MHz crystal oscillator, the module delivers stable and precise UART communication.
✔ I2C & SPI Compatibility – Supports both I2C and SPI protocols for flexible integration
✔ Dual Channel UART – Expands serial communication for microcontrollers with limited UART ports
✔ High-Speed Data Exchange – SPI interface improves data transfer speeds compared to conventional UART communication
✔ Wide Voltage Compatibility – Works with 3.3V and 5V logic levels, making it compatible with a range of microcontrollers
✔ Integrated Crystal Oscillator – The 14.7456 MHz crystal ensures precise and stable UART operation
✔ Compact Design – Breadboard-friendly layout with standard pin spacing for easy prototyping
✔ Versatile Applications – Ideal for serial communication in IoT, industrial automation, and embedded systems
| Parameter | Specification |
|---|---|
| Chipset | SC16IS750 |
| Communication Interfaces | I2C, SPI |
| UART Channels | 2 |
| Supply Voltage | 3.3V – 5.5V |
| Logic Level Compatibility | 3.3V & 5V |
| Oscillator Frequency | 14.7456 MHz |
| Maximum Baud Rate | 5 Mbps (SPI) |
| Power Consumption | Low power operation |
| Operating Temperature | -40°C to +85°C |
| Board Dimensions | Compact, breadboard-friendly |
Power the Module
Select Communication Mode (I2C/SPI)
Connect the UART Device
Load the Driver Code
The latest price of CJMCU-750 SC16IS750 I2C/SPI to Dual Channel UART Converter Module in Bangladesh is BDT 650 You can buy the CJMCU-750 SC16IS750 I2C/SPI to Dual Channel UART Converter Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
