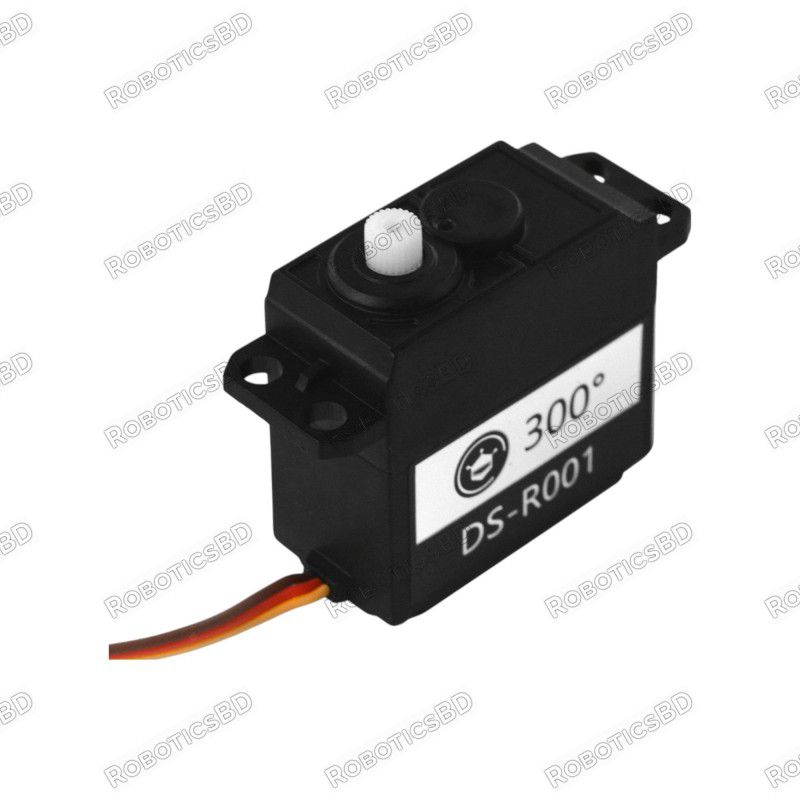

The DFRobot 6Kg 300° Clutch Servo is a unique servo motor with a built-in clutch mechanism. This makes it ideal for applications where the servo may need to protect itself from damage, or where it needs to be able to give way when the resisting force is too high. Featured By RoboticsBD.
When a servo is operated under complex circumstances such as robot and model, it may get stuck, be burned, or damaged due to external forces, which could bother you a lot...
Now DFRobot is launching a series of servos with clutch function and electronic protection that can solve your problems perfectly.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through clutch function, which prevents it from being damaged.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
This servo features large torque, stable performance, accurate running angle and easy to install. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 6kg.cm. Since there is no limit switch inside the servo, users can make the servo rotate smoothly in 360 degrees (manually only). Besides, the servo could operate fluently with minimal power, and you can just supply power to it by normal battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum 300 degrees rotation angle within the pulse range of 500-2500μsec.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Rotational Angle | Around 300° |
| Holding Torque | 6kg |
| Stall Torque | 10kg |
| Operating Voltage | 4.8-7.2V |
| No-Load Speed | 0.17sec/60° (at 7.2V) |
| Operating Temperature | -30°C to 60°C |
| Dimensions | 40.7mm x 20mm x 38.2mm |
| Weight | 55g |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 5 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Servo Internal structure
1 x 6Kg 300° Clutch Servo
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 6Kg 300° Clutch Servo DFRobot in Bangladesh is BDT 1,800 You can buy the 6Kg 300° Clutch Servo DFRobot at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
