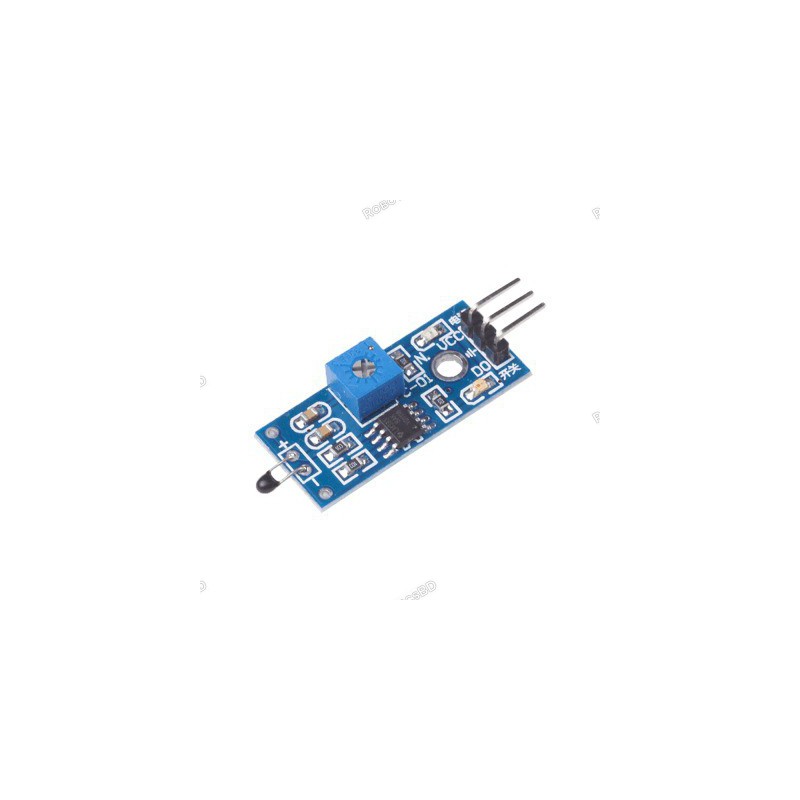

The NTC Thermistor Temperature Sensor Module is a compact and cost-effective solution for detecting ambient temperature in a variety of environments. Utilizing an NTC thermistor for temperature sensitivity and an LM393 comparator for reliable digital signal output, this module offers precise and adjustable temperature detection from 20°C to 80°C.
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
The NTC Thermistor Temperature Sensor Module is a compact and cost-effective solution for detecting ambient temperature in a variety of environments. Utilizing an NTC thermistor for temperature sensitivity and an LM393 comparator for reliable digital signal output, this module offers precise and adjustable temperature detection from 20°C to 80°C.
With its digital (DO) output, this sensor can be easily interfaced with microcontrollers like Arduino, ESP32, or Raspberry Pi, making it ideal for DIY projects and environmental monitoring systems. The onboard potentiometer allows users to manually set the temperature threshold for triggering the digital output, enabling flexible use in a range of applications such as water temperature control, HVAC systems, and tank monitoring.
High Sensitivity: Uses NTC thermistor for accurate ambient temperature sensing.
Adjustable Threshold: Built-in potentiometer lets you fine-tune the temperature detection point.
Digital Output: Simple high/low (0 or 1) signal suitable for direct microcontroller input.
Wide Operating Voltage: Supports 3.3V to 5V systems.
Reliable Comparator: Equipped with LM393 comparator for stable and clean digital output.
Mounting Ready: Includes pre-drilled holes for easy integration into enclosures or project boards.
| Specification | Details |
|---|---|
| Sensor Type | NTC Thermistor |
| Detection Range | 20°C to 80°C |
| Output Format | Digital (0 or 1) |
| Operating Voltage | 3.3V – 5V |
| Comparator Chip | LM393 |
| Current Output | Max 15mA |
| Adjustment Method | Potentiometer |
| Mounting Holes | Yes |
| Module Size | Compact, PCB-mounted |
Room temperature monitoring
Water heater and tank temperature sensing
Greenhouse climate control
Smart home temperature automation
DIY weather stations and Arduino projects
1 x NTC Thermistor Temperature Sensor Module
If you need an accurate, low-cost, and easy-to-integrate temperature sensing solution, the NTC Thermistor Module offers unmatched simplicity and flexibility with adjustable thresholds and reliable digital output.
The latest price of NTC Thermistor Temperature Sensor Module in Bangladesh is BDT 85 You can buy the NTC Thermistor Temperature Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
