Note: Relay might be different from the picture as per stock
Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement
This 2 Road/Channel Relay Module (with light coupling) 24V module meet the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.
The triggering of 2 Road/Channel Relay Module is reliable, more stable. The double FR – 4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.
The inputs of 2 Channel 24V Relay Module are isolated to protect any delicate control circuitry. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it.
The use of such high-voltage relay eliminates the risk of heating up of the relay as electromechanical relay limit the current consumption in accordance with a voltage rating. Featured By RoboticsBD.
Note: Relay might be different from the picture as per stock
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
DC+:The positive (according to the relay voltage VCC: connect power supply)
DC-: connect power negative
IN1: relay module (effective) high-level trigger signal trigger end
IN2: relay module (effective) high-level trigger signal trigger end
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Channel | 2 |
| Trigger Voltage (VDC) | 24 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Length (mm) | 50 |
| Width (mm) | 40 |
| Height (mm) | 20 |
| Weight (gm) | 30 |
| Shipment Weight | 0.033 kg |
| Shipment Dimensions | 6 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

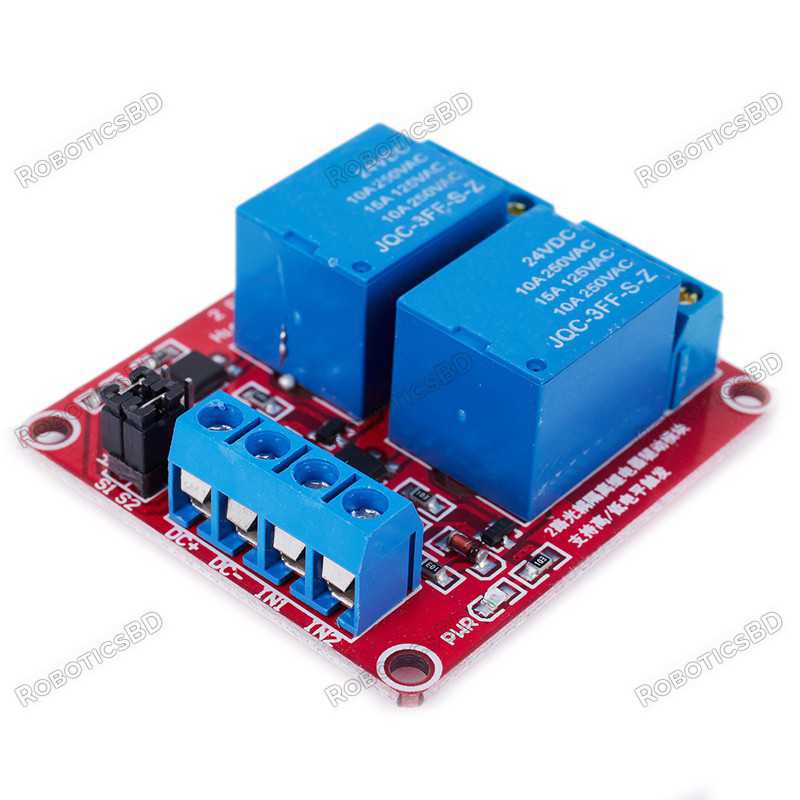

1 x 2 Channel 24V Relay Board Module with OPTO Isolation Support High or Low Level Trigger
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
The latest price of 2 Channel 24V Relay Board Module with OPTO Isolation Support High or Low Level Trigger in Bangladesh is BDT 230 You can buy the 2 Channel 24V Relay Board Module with OPTO Isolation Support High or Low Level Trigger at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
